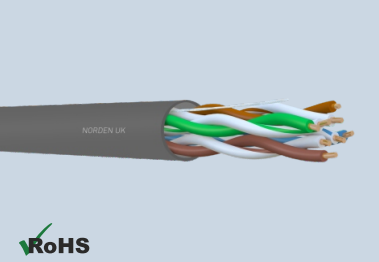

The Norden Category 6 UTP CCA cable is designed to meet Category 6 / Class E performance requirements, supporting data transmission up to 250 MHz and suitable for Gigabit Ethernet 1000Base-T and 1000Base-Tx applications up to 100 m. The cable uses Copper Clad Aluminium conductors, providing a cost-effective solution for standard networking installations where full copper performance is not essential. It maintains good pair balance for reliable EMC (Electro-Magnetic Compatibility), minimizing signal interference and ensuring stable transmission performance.
The Norden Category 6 UTP CCA cable is designed to meet Category 6 / Class E performance requirements, supporting data transmission up to 250 MHz and suitable for Gigabit Ethernet 1000Base-T and 1000Base-Tx applications up to 100 m. The cable uses Copper Clad Aluminium conductors, providing a cost-effective solution for standard networking installations where full copper performance is not essential. It maintains good pair balance for reliable EMC (Electro-Magnetic Compatibility), minimizing signal interference and ensuring stable transmission performance.
Conductor Material | Copper Clad Aluminum, CCA(Copper content ≥ 20%） |
Conductor Size | 23 AWG |
Conductor Construction | Solid |
Insulation Material | HDPE |
Nom. Thickness | 0.18mm |
Insulation Diameter | 0.89±0.1mm |
Conductor Unit Identification | Solid/Stripe |
Colour Code | Per TIA/EIA 568-B |
Total Number of Wires | 8 |
Separator | Yes |
Rip Cord | Yes |
Outer Jacket | PVC |
Outer Jacket Thickness & Ex.Diameter | 0.8mm, 6.0±0.20mm |
Outer Jacket Colour | Grey,As Per Requirement |
Marking | As Per Requirement |
Frequency Range | 1 - 250 MHz |
Impedance | 100 ± 15 Ω |
Coupling Attenuation | ≤51dB |
DC Resistance | 18.5Ω/100m |
Max. Resistance Unbalance | ≤2% |
Capacitance | ≤5nF/ 100m |
Capacitance Unbalance | ≤4% |
Propagation Delay Skew | 45ns/100m |
Velocity of propagation | 62.2% |
Dielectric Strength | DC-1KV/1 Min |
Max.Tensile Strength - Short Term | 13.5MPa |
Tensile Strength | Sheath ≥13.5 MPa, Insulation ≥16 MPa |
Elongation at Break | Sheath ≥150%, Insulation ≥ 300% |
Conductor Elongation at Break | ≥15% |
Installation Bending Radius | >8OD |
Operating Temperature Range | -20 to +60 °C °C |
*Supplied cables meet Cat. 6a min. transmission requirements as per IEC 61156-5 Ed. 2
| Freq. Mhz | Insertion Loss (dB) | NEXT (dB) | RL (dB) | ACR-N (dB) | ACR-F (dB) | PS NEXT (dB) | PS ACR-N (dB) | PS ACR-F (dB) |
|---|---|---|---|---|---|---|---|---|
| 1 | 3.0 | 65.0 | 19.0 | 62.0 | 63.3 | 62.0 | 59.0 | 60.3 |
| 4 | 4.0 | 63.0 | 19.0 | 59.0 | 51.2 | 60.5 | 56.5 | 48.2 |
| 8 | 5.7 | 58.2 | 19.0 | 52.5 | 45.2 | 55.6 | 49.9 | 42.2 |
| 10 | 6.3 | 56.6 | 19.0 | 50.2 | 43.3 | 54.0 | 47.7 | 40.3 |
| 16 | 8.0 | 53.2 | 18.0 | 45.2 | 39.2 | 50.6 | 42.6 | 36.2 |
| 20 | 9.0 | 51.6 | 17.5 | 42.6 | 37.2 | 49.0 | 39.9 | 34.2 |
| 25 | 10.1 | 50.0 | 17.0 | 39.9 | 35.3 | 47.3 | 37.2 | 32.4 |
| 31 | 11.6 | 48.4 | 16.5 | 37.0 | 33.4 | 45.7 | 34.3 | 30.4 |
| 63 | 16.5 | 43.4 | 14.0 | 26.9 | 27.3 | 40.4 | 24.1 | 24.3 |
| 100 | 21.3 | 39.9 | 12.0 | 18.6 | 23.3 | 37.1 | 15.8 | 20.3 |
| 200 | 31.5 | 34.8 | 9.0 | 3.3 | 17.2 | 31.9 | 0.3 | 14.2 |
| 250 | 35.9 | 33.1 | 8.0 | -2.8 | 15.3 | 30.2 | -5.8 | 12.3 |
| Part Number | Description | Standard Length |
| 130-10001104X | Category 6 U/UTP 4 Pair CCA Cable | 305 mtr |
