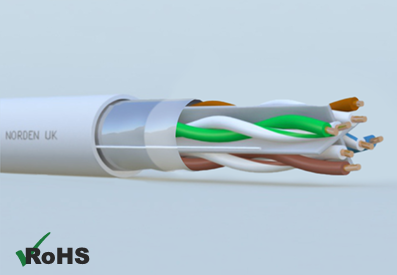

Norden Category 6A U/UTP cables surpass the requirements of Category 6A/Class EA standards. Engineered for high-performance networking, they are tested up to 500 MHz and fully support 10 Gigabit Ethernet applications over distances of up to 100 meters. The cable's exceptional pair-balance delivers superior electromagnetic compatibility (EMC), minimizing signal radiation and external interference while enhancing noise immunity and alien crosstalk performance in U/UTP cabling systems.The use of a PVDF (Polyvinylidene Fluoride) outer jacket makes these cables highly durable and well-suited for sub-zero environments, offering excellent mechanical stability, flexibility, and resistance to harsh weather conditions.
Norden Category 6A U/UTP cables surpass the requirements of Category 6A/Class EA standards. Engineered for high-performance networking, they are tested up to 500 MHz and fully support 10 Gigabit Ethernet applications over distances of up to 100 meters. The cable's exceptional pair-balance delivers superior electromagnetic compatibility (EMC), minimizing signal radiation and external interference while enhancing noise immunity and alien crosstalk performance in U/UTP cabling systems.The use of a PVDF (Polyvinylidene Fluoride) outer jacket makes these cables highly durable and well-suited for sub-zero environments, offering excellent mechanical stability, flexibility, and resistance to harsh weather conditions.
| Product Sequence | Premium |
| Product Type | Twisted Pair Cable |
Conductor Material | Bare Copper |
Conductor Size | 23AWG |
Conductor Construction | Solid |
Insulation Material | FEP |
Insulation O.D. | 1.00 ± 0.05 mm |
Conductor Unit Identification | Solid/Stripe |
Colour Code | Per TIA/EIA 568-B |
Conductor Unit Lay-Up | Pairs |
Total Number of Wires | 8 |
Seperator | FEP Crossweb |
Rip Cord | Yes, Kevlar |
Outer Jacket Material | PVDF |
Outer Jacket Thickness | 0.4 mm |
Outer Diameter | 6.15 ± 0.2 mm |
Delay Skew | 45 ns/100m |
Characteristic Impedence | 100 Ω ± 15% @ 1-100 MHz , 100 Ω ± 22% @ 101-250 MHz , 100 Ω ± 25% @ 250-500 MHz |
Nom. DC Resistance | 9.38 Ohms/100m |
Resistance Unbalance | ≤ 5% |
Nom. Capacitance | 5.6 nF/100m |
Dielectric Strength | 1.5 KV/ minute min. |
Velocity of Propagation | ≥ 67% |
Voltage Rating | 300 V |
Temperature Rating | -40°C to +75°C |
Cat. 6A Un-screened Pair Horizontal Cables*
| Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | ACRF (dB) | PS.NEXT (dB) | PS.ACRF (dB) | RL (dB) | Delay (ns/100m) |
|---|---|---|---|---|---|---|---|
| 1 | 2.1 | 74.3 | 67.8 | 72.3 | 64.8 | 20.0 | 70 |
| 4 | 3.8 | 65.3 | 55.8 | 63.3 | 52.8 | 23.0 | 552 |
| 8 | 5.3 | 60.8 | 49.7 | 58.8 | 46.2 | 24.5 | 547 |
| 10 | 5.9 | 59.3 | 47.8 | 57.3 | 44.8 | 25.0 | 546 |
| 16 | 7.5 | 56.2 | 43.7 | 54.2 | 40.7 | 25.0 | 543 |
| 20 | 8.4 | 54.8 | 41.8 | 52.8 | 38.8 | 25.0 | 542 |
| 25 | 9.4 | 53.3 | 39.6 | 51.3 | 36.8 | 24.3 | 541 |
| 31.25 | 10.5 | 51.9 | 37.9 | 49.9 | 34.9 | 23.6 | 540 |
| 62.5 | 15.0 | 47.4 | 31.9 | 45.4 | 28.9 | 21.5 | 539 |
| 100 | 19.1 | 44.3 | 27.8 | 42.3 | 24.8 | 20.1 | 538 |
| 200 | 27.6 | 39.8 | 21.8 | 37.8 | 18.8 | 18.0 | 537 |
| 250 | 31.1 | 38.3 | 19.3 | 36.3 | 16.8 | 17.3 | 536 |
| 300 | 34.3 | 37.1 | 18.3 | 35.1 | 15.3 | 16.8 | 536 |
| 400 | 40.1 | 35.3 | 15.8 | 33.1 | 12.8 | 15.9 | 536 |
| 500 | 45.3 | 33.8 | 13.8 | 31.8 | 10.8 | 15.2 | 536 |
| Part Number | Description | Standard Length |
| 114-1000O104X | Cat 6A U/UTP 4 Pair Cable PVDF | 305 mtr |
