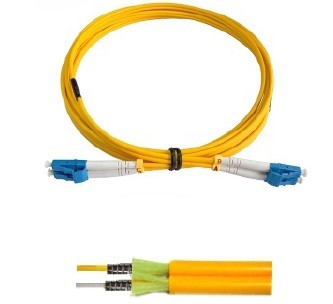

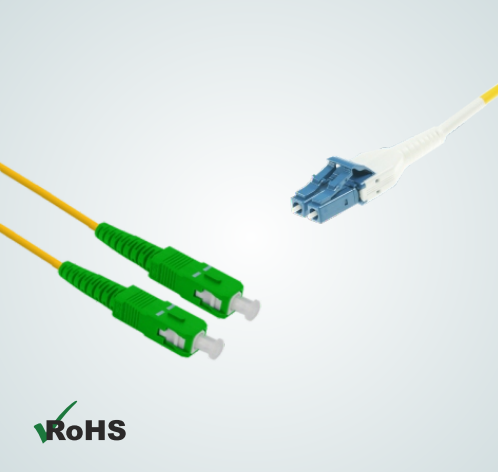

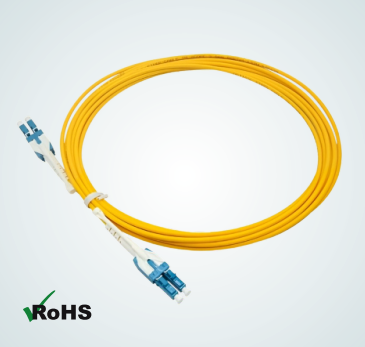

They comprise two tight buffer fibres housed within an Individual outer jacket in OM1, OM2, OM3, OM4, OS1, OS2 multi-mode and single mode variants. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MTRJ, E2000 connector in simplex and duplex. These are typically not ruggedized, depending on the application and a spring loaded electrical contact housed within LSHF plastic shell possible, making them suitable for internal use.
They comprise two tight buffer fibres housed within an Individual outer jacket in OM1, OM2, OM3, OM4, OS1, OS2 multi-mode and single mode variants. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MTRJ, E2000 connector in simplex and duplex. These are typically not ruggedized, depending on the application and a spring loaded electrical contact housed within LSHF plastic shell possible, making them suitable for internal use.
|
Range of Mode |
Single or Multimode |
|
Cable Type |
Simplex or Duplex Zipcord |
|
Connector Style |
SC, FC, ST, LC, MTRJ, E2000 |
|
Polish or Ferrule Interface Type |
PC, UPC, APC |
|
Cable Diameter |
0.9mm, 1.6mm, 2.0mm, 3.0mm |
|
Lengths |
Standard & Custom Lengths |
|
Strength Member |
Aramid Yarn |
|
Outer Jacket |
PVC or LSZH |
|
Cable Assembly Length (<15 meter Tolerance) |
-0/+100mm |
|
Cable Assembly Length (>15 meter Tolerance) |
-0/+10% |
|
Jacket Colour (Multimode: OM1 & OM2) |
Orange |
|
Jacket Colour (Multimode: OM3 / OM4) |
Aqua / Violet |
|
Jacket Colour (Single Mode: OS1 & OS2) |
Yellow |
|
Durability |
500 cycles(0.2 dB max increase), 1000mate/demate cycles |
|
Operating Temp. |
-20 ºC to +70 ºC/+85 ºC (armoured) |
|
Storage Temp. |
-40 ºC to +85ºC |
|
Ferrule Concentricity |
< 1μm, Other Ferrule Concentricity < 1μm |
|
Humidity (FOTP-5) |
90-95% at 40°C |
|
Strength of Coupling Mechanism (FOTP-185) |
33 N at 0° for 5 sec |
|
Cable Retention (FOTP-6) |
50 N at 0° for 5 sec. |
|
Twist (FOTP-36) |
15 N at 0° 5 turns, 10 cycles |
|
Flex (FOTP-1) |
0.5 Kg at 25 cm, +90° to -90°, 100 cycles |
|
Fibre Type |
Max. Attenuation |
Min. Overfill Launch |
Min. Gigabit Ethernet Link |
||||||
|
Gigabit |
10Gigabit |
||||||||
|
850nm |
1300nm |
1310nm |
1550nm |
850nm |
1300nm |
850nm |
1300nm |
850nm |
|
|
OM1 62.5/125μm |
≤2.7 |
≤0.6 |
- |
- |
≥200 |
≥600 |
275 |
550 |
- |
|
OM2 50/125μm |
≤2.5 |
≤0.7 |
- |
- |
≥500 |
≥500 |
550 |
550 |
- |
|
OM3 50/125μm |
≤2.3 |
≤0.6 |
- |
- |
≥1500 |
≥500 |
1000 |
600 |
300 |
|
OM4 50/125μm |
≤2.3 |
≤0.6 |
- |
- |
≥3500 |
≥500 |
1000 |
600 |
550 |
|
OS1 9/125μm |
- |
- |
≤0.34 |
≤0.20 |
- |
- |
- |
- |
- |
|
OS2 9/125μm |
- |
- |
≤0.34 |
≤0.24 |
- |
- |
- |
- |
|
|
Item |
Single mode |
Multimode |
||||
|
PC |
UPC |
APC |
62.5/125 |
50/125 |
50/125 10G |
|
|
Insert. Loss/Connector (Single Fibre) |
0.2dB Max. (0.15dB typ.) |
0.3dB Max. (0.25dB typ.) |
||||
|
Return Loss |
≥ 45 dB |
≥ 50 dB |
≥ 60 dB |
N.A |
||
|
Insert. Loss/MTRJ Connector |
0.5dB Max. (0.45dB typ.) |
0.5dB Max. (0.45dB typ.) |
||||
|
Pull strength |
≥98N |
≥98N |
≥98N |
≥98N |
||
| Geometric Specifications | |
|
Radius of Curvature |
7-25 mm |
|
Apex Offset |
0-50 um |
|
Radial Fibre Height |
-50 to +50 nm |
|
Angular Offset |
<0.3 degrees |
|
Fibre Roughness |
0-25 nm |
|
Ferrule Roughness |
0-50 nm |
| End Face Defects | |
|
Fibre Core |
0 nm² |
|
Mode field diameter |
0 nm² |
|
Ferrule contact zone |
0 nm² |
|
Testing & Inspection |
100% |
| Epoxy | |
|
Temperature Coeff .Tg |
120 |
|
Curing Method |
Out Gassed |
|
Residual Epoxy |
No Visible Epoxy Ring |
| Configuration Control | |
|
Serialization |
Each Cable is Serialized |
| E2000-E2000 Singlemode Patch Cord |
OS1 (9/125) |
OS2 (9/125) |
|
E2000/PC-E2000/PC 1m Duplex PVC |
332-14OS1E1E1001 |
332-14OS2E1E1001 |
|
E2000/PC-E2000/PC 2m Duplex PVC |
332-14OS1E1E1002 |
332-14OS2E1E1002 |
|
E2000/PC-E2000/PC 3m Duplex PVC |
332-14OS1E1E1003 |
332-14OS2E1E1003 |
|
E2000/PC-E2000/PC 5m Duplex PVC |
332-14OS1E1E1005 |
332-14OS2E1E1005 |
|
E2000/PC-E2000/PC 10m Duplex PVC |
332-14OS1E1E1010 |
332-14OS2E1E1010 |
|
E2000/PC-E2000/PC 1m Duplex LSZH |
332-24OS1E1E1001 |
332-24OS2E1E1001 |
|
E2000/PC-E2000/PC 2m Duplex LSZH |
332-24OS1E1E1002 |
332-24OS2E1E1002 |
|
E2000/PC-E2000/PC 3m Duplex LSZH |
332-24OS1E1E1003 |
332-24OS2E1E1003 |
|
E2000/PC-E2000/PC 5m Duplex LSZH |
332-24OS1E1E1005 |
332-24OS2E1E1005 |
|
E2000/PC-E2000/PC 10m Duplex LSZH |
332-24OS1E1E1010 |
332-24OS2E1E1010 |
| E2000-E2000 Multimode Patch Cord |
OM1 (62.5/125) |
OM2 (50/125) | OM3 (50/125) | OM4 (50/125) |
|
E2000/PC-E2000/PC 1m Duplex PVC |
332-14OM1E1E1001 |
332-14OM2E1E1001 |
332-14OM3E1E1001 |
332-14OM4E1E1001 |
|
E2000/PC-E2000/PC 2m Duplex PVC |
332-14OM1E1E1002 |
332-14OM2E1E1002 |
332-14OM3E1E1002 |
332-14OM4E1E1002 |
|
E2000/PC-E2000/PC 3m Duplex PVC |
332-14OM1E1E1003 |
332-14OM2E1E1003 |
332-14OM3E1E1003 |
332-14OM4E1E1003 |
|
E2000/PC-E2000/PC 5m Duplex PVC |
332-14OM1E1E1005 |
332-14OM2E1E1005 |
332-14OM3E1E1005 |
332-14OM4E1E1005 |
|
E2000/PC-E2000/PC 10m Duplex PVC |
332-14OM1E1E1010 |
332-14OM2E1E1010 |
332-14OM3E1E1010 |
332-14OM4E1E1010 |
|
E2000/PC-E2000/PC 1m Duplex LSZH |
332-24OM1E1E1001 |
332-24OM2E1E1001 |
332-24OM3E1E1001 |
332-24OM4E1E1001 |
|
E2000/PC-E2000/PC 2m Duplex LSZH |
332-24OM1E1E1002 |
332-24OM2E1E1002 |
332-24OM3E1E1002 |
332-24OM4E1E1002 |
|
E2000/PC-E2000/PC 3m Duplex LSZH |
332-24OM1E1E1003 |
332-24OM2E1E1003 |
332-24OM3E1E1003 |
332-24OM4E1E1003 |
|
E2000/PC-E2000/PC 5m Duplex LSZH |
332-24OM1E1E1005 |
332-24OM2E1E1005 |
332-24OM3E1E1005 |
332-24OM4E1E1005 |
|
E2000/PC-E2000/PC 10m Duplex LSZH |
332-24OM1E1E1010 |
332-24OM2E1E1010 |
332-24OM3E1E1010 |
332-24OM4E1E1010 |
