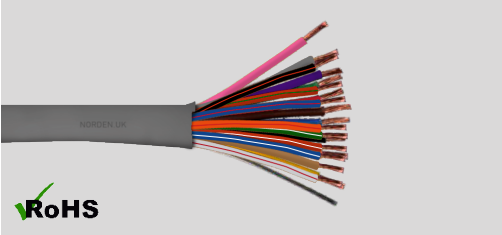

Norden Unshielded Multi Conductor Cable is suitable to use within Commercial Audio Systems, Control and Instrumentation purpose. The cable is constructed with PVC insulation and PVC Outer jacket. The cable offers excellent flexibility and ease of installation making it ideal for building automation, signal control, and low-voltage applications.
Norden Unshielded Multi Conductor Cable is suitable to use within Commercial Audio Systems, Control and Instrumentation purpose. The cable is constructed with PVC insulation and PVC Outer jacket. The cable offers excellent flexibility and ease of installation making it ideal for building automation, signal control, and low-voltage applications.
CABLE CONSTRUCTION |
| Characteristic | Value |
No. of Conductor | 2 |
Conductor Size | 1 mm² ( 50/0.16 ) |
| Insulation Thickness | 0.6 mm |
| Insulation Diameter | 2.3 mm |
Jacket Thickness | 0.6 mm |
| Jacket Diameter | 5.7 mm |
Max. Recommended Pulling Tension | 200 N |
Bending Radius | 57 mm |
| Operating Temperature | 0˚C to +60˚C |
| Characteristic | Unit | Value |
| Nom. Capacitance Cond. to Cond | pF/m | 70
|
| DCR Conductor | Ω/km | ≤18 |
| Dielectric Strength | MV/min | ≥20 |
| Max. Recommended Current | A | 10 |
| Max. Operating Voltage | V | 300/500 |
| Characteristic | Value |
Test Material | PVC |
Before Tensile Strength (Mpa) | ≥ 10.8 |
Aging Elongation (%) | ≥ 100 |
After Tensile Strength | ≥ 70% |
Aging Elongation (%) | ≥ 45 |
Cold Bend (-20±°C x 4 hrs) | No Crack |
| Individual Core | Colour |
Core 1 | Black |
| Core 2 | White |
| Part Number | Description | Net Weight (Kg/Km) |
| 71-1102011 | 2 Core 1 mm² Unshielded Multi Conductor Cable PVC | 43 |
