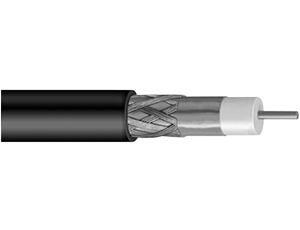

NORDEN RF300 Braid Shielded Coaxial Cable is suitable for external installation in RF Systems. 50 Ohm Impedance provides best transmission performance in wireless environment. Low loss makes this cable ideal for use in high frequency applications.
NORDEN RF300 Braid Shielded Coaxial Cable is suitable for external installation in RF Systems. 50 Ohm Impedance provides best transmission performance in wireless environment. Low loss makes this cable ideal for use in high frequency applications.
CABLE CONSTRUCTION |
| Characteristic | Value |
Center Conductor Diameter | 1.80±0.02 mm |
Insulation Diameter | 4.80±0.10 mm |
Shielding Diameter | 5.60±0.20 mm |
Braid Wire Coverage | 80% |
Outer Jacket Diameter | 7.60±0.20 mm |
Min. Bending Radius (Installation) | 22 mm |
Max. Pulling Tension | 400N |
Operating Temperature | -40°C to +85°C |
| Characteristic | Unit | Value |
| Characteristic Impedance | Ω | 50 ± 2 |
| Capacitance | pF/m
| 80.0 |
| Center Conductor DCR | Ω/km | 7.0 |
| Braid Wire DCR | Ω/km
| 13.5 |
| Velocity of Propagation | % | 82 |
| Dielectric Strength | VCA | 2 |
| Sparkover Voltage | KV | 3.0 |
| Return Loss (5-2200 MHz) | dB | 19.0 |
| Insulation Resistance | MΩ•km | 5000 |
| Cut-off Frequency | Ghz | 22.8 |
| Withstanding Voltage(AC) | KV | 2.0 |
| Peak Power Rating | KW | 9.23 |
| Shielding Effectiveness >10MHz | dB | ≥85 |
| Frequency (MHz) | Attenuation (dB/100 m) |
| 100 | 6.50 |
| 150 | 7.90 |
| 280 | 10.80 |
| 350 | 12.10 |
| 400 | 13.00 |
| 800 | 18.90 |
| 900 | 20.20 |
| 1500 | 26.80 |
| 1800 | 29.70 |
| 2000 | 31.50 |
| 2200 | 33.30 |
| 2500 | 35.80 |
| 3000 | 39.90 |
| Part Number | Description |
| 450-0RF30012 | RF 300 Braid Shielded Coaxial Cable 50 Ohm, LSZH |
| 450-0RF30013 | RF 300 Braid Shielded Coaxial Cable 50 Ohm, PE |
